Dub Tub minor refurb

Postby 9 Fingers » Sat Feb 19, 2011 8:50 am

Well it's finally got warm enough in the garage to work (YEAH!) so here is the to do list:
Clutch and flywheel -- new and improved
Motor and tranny mounts -- new poly
Frame truss -- new EMPI
Engine seals -- flywheel seal, valve covers, and deep oil sump
Push rod tubs -- MST billet aluminum
Swing axle boots -- new
Fuel line rear bulk head to carb -- replace
Art work for fan shroud
Clean everything and repaint as needed
Anything else I find once i get in there..............
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Sat Feb 19, 2011 2:56 pm

Engine out ready to go onto the engine stand for cleaning and further disassembly
Up in the air awaiting motor mount swap and truss installation
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby Joe-405 » Sat Feb 19, 2011 3:38 pm

That will be cool..................


I know how you feel about the weather also. Been workin on the baja as well, Its nice having the garage door open !
User avatar
Joe-405

Posts: 422
Joined: Tue Jul 20, 2010 4:50 pm
Location: Oklahoma City
Highscores: 4

Re: Dub Tub minor refurb

Postby Snot Rod » Tue Feb 22, 2011 9:18 pm

Life is good when you can be out turning wrenches and banging metal! Sure beats working.........
User avatar
Snot Rod

Posts: 115
Joined: Wed Sep 16, 2009 9:29 pm
Location: Usually under a VW

Re: Dub Tub minor refurb

Postby Joe-405 » Tue Feb 22, 2011 10:56 pm

I think we spoke too soon on the oklahoma weather ! Oh well it cant last long i hope
User avatar
Joe-405

Posts: 422
Joined: Tue Jul 20, 2010 4:50 pm
Location: Oklahoma City
Highscores: 4

Re: Dub Tub minor refurb

Postby 9 Fingers » Wed Feb 23, 2011 8:04 pm

New MST pushrod tubes installed
Old motor mounts ( looks like red cottage cheese)
Things left to do :shock:
Last edited by 9 Fingers on Wed Feb 23, 2011 11:17 pm, edited 1 time in total.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby Mason » Wed Feb 23, 2011 9:28 pm

Lots of fancy new parts. Beefin up the rear for a big turbo motor??? I can't believe those mounts. What brand/how long were they on there?
User avatar
Mason

Posts: 157
Joined: Sat Sep 05, 2009 8:37 am
Location: Midwest City

Re: Dub Tub minor refurb

Postby 9 Fingers » Wed Feb 23, 2011 11:14 pm

I can only dream of a Big turbo motor :( I bought the mounts from Bethany Imports (Bugpack?) about 10 years ago, of course I only put on about 15,000 miles during that time. Yeah I'm not to happy with their performance or longevity so I'm giving CB Performance Gorilla mounts a try and locking down the engine with a Kafer truss bar.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Fri Mar 11, 2011 8:05 pm

Not conducive to good motor retension or restraint.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Mon Mar 14, 2011 10:13 am

looks like you found the source of your wheel hop.

Use HD rubber or solidmount.
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby 9 Fingers » Sun Jun 12, 2011 10:50 pm

Well things where going back together swell, installed all the new parts transaxle should be good and solid now
Added art work to the fan shroud
And installed the new clutch (1700lbs Empi)
I figured it was also a good idea to replace the clutch cable --- But I encountered a minor problem the clutch cable tube had broke loose from its moorings and...
However the old cable was not damaged.
So does anybody know where I can get a new clutch cable tube?????????????
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Sun Jun 12, 2011 11:45 pm

you pulled the metal tube out of the car?

WOW never heard of that one! thats why you had the shakes...........
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby Joe-405 » Mon Jun 13, 2011 12:13 am

vdubjim wrote:you pulled the metal tube out of the car?

WOW never heard of that one! thats why you had the shakes...........




Yeah umm i gotta agree with Jim on this one....................... It took me about 5 different power tools and a plasma cutter to get mine out ! AND the pan was cut in half !!!!!
User avatar
Joe-405

Posts: 422
Joined: Tue Jul 20, 2010 4:50 pm
Location: Oklahoma City
Highscores: 4

Re: Dub Tub minor refurb

Postby 9 Fingers » Mon Jun 13, 2011 5:13 am

Looks like the PO replaced it before and did a piss poor job of it. It was only held in place by 2 hose clamps on the pedal end. There where excess panels already cut in the back bone really easy and a little unnerving :shock:
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby Joe-405 » Mon Jun 13, 2011 5:08 pm

Heard of some buggy guys using a roll of steel brake line for a replacement ??????? Its like 25 bucks a roll
User avatar
Joe-405

Posts: 422
Joined: Tue Jul 20, 2010 4:50 pm
Location: Oklahoma City
Highscores: 4

Re: Dub Tub minor refurb

Postby vwlimoguy » Mon Jun 13, 2011 8:16 pm

Some crafty welding, a bit of extra tube and some holes in the tunnel will make that strong as new.
User avatar
vwlimoguy

Posts: 297
Joined: Wed Nov 04, 2009 1:38 pm
Location: OKC
Highscores: 5

Re: Dub Tub minor refurb

Postby 9 Fingers » Tue Jun 14, 2011 5:15 pm

I'm workin on that Luke!!!
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Sun Jul 03, 2011 8:04 pm

So after getting the the new clutch tube in (sorry I didn't take any photos of it) it's on to the next modification.
Some quality time with the grinder and cut-off wheel
Next clean up the cuts and install a removable rear apron
With half turn fastners
Just like our buddy Mal's Bug.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Mon Jul 25, 2011 8:27 pm

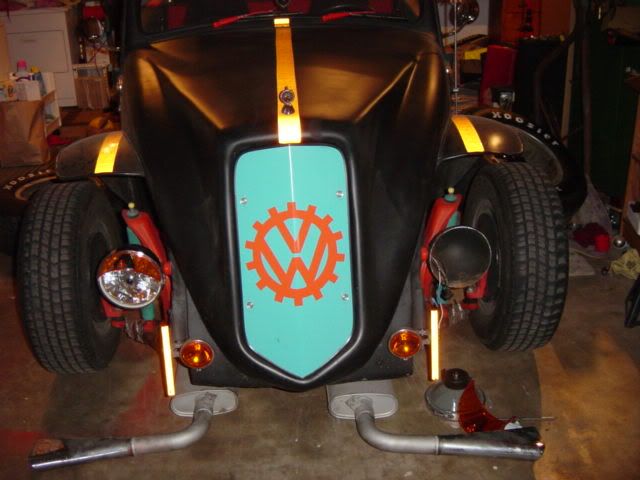

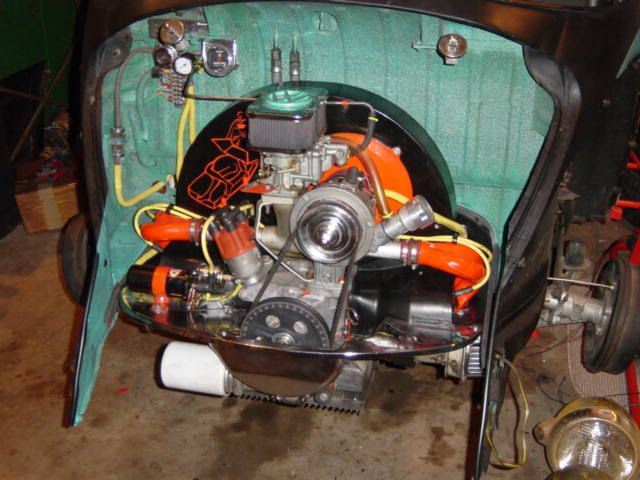

Progress was made this weekend...finally :shock: Engine is back in and all hooked up! Yeah!!!
Tried to up date the headlights with visors...ended up cracking one headlight and never got the other one to fit...
freakin cheap ass headlights anyway

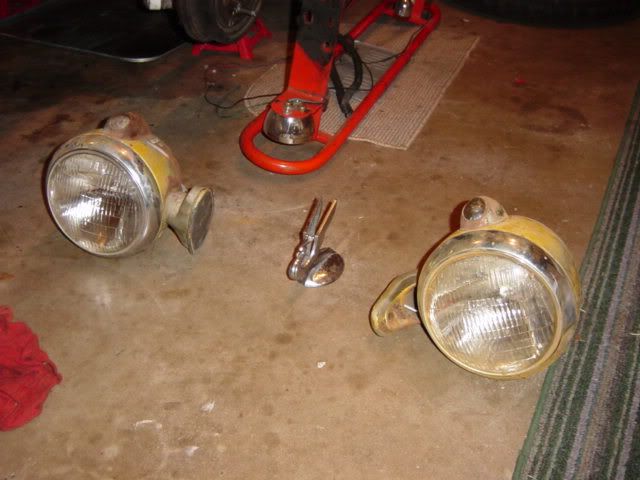

Sooooo.....got some different headlights off E-Bay from a 1936 Chevy truck and a same vintage hood ordament...just got to do some resto work on them.

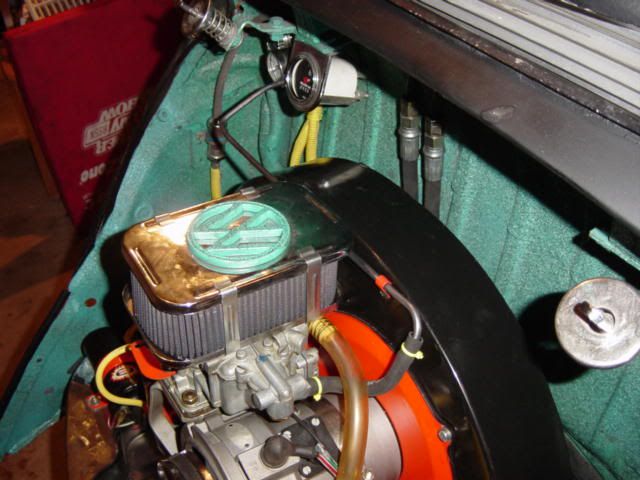

Also adapted a Corvette vaccum line to make a new fuel line that doesn't hang down over the new tin art.
So have been busy !!!! No just thinkin' about wackin' off like some others we all know on here!! LOL :lol: :lol:
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Fri Aug 05, 2011 3:47 pm

I am now on my second repaint of the new headlights :x . I'm either working to fast :roll: or it's just to damn hot :twisted: --- but my paint keeps wanting to crackle. The boys at the base Auto Hobby shop don't mind through I'm givin' there media blasting cabinet a good workout. :) I'll post pic's when there worthy of postin'.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Fri Aug 12, 2011 4:50 pm

Well here are the new "old" headlights
Also decided to run with out the salt flat discs I'll be prepping and painting the rims soon (don't like the Gold) and I had allot of trash in the carb from it's long spell in the garage. So I did a quickie rebuild and ... all is right now and looking forward to some time behind the wheel. :D
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby gimpy60 » Sat Aug 13, 2011 6:22 am

keep the discs, hide those rubber Pontiac wheels
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby 9 Fingers » Sat Aug 13, 2011 8:04 am

JP your thinking of these T/A wheels
which are molded from a rubber like material called "Endura" and bonded to a steel wheel (I believe). The wheels on the Tub are solid aluminum. Fronts are 14X7 off of a 80's Bonneville the rears are 15X8 off of a 79 Trans Am.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby gimpy60 » Sat Aug 13, 2011 2:10 pm

lites look great, wheels, weeeellllllllll, cover 'em up :?
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby 9 Fingers » Sun Aug 14, 2011 9:03 am

The company I bought the headlight visors and stop light viewer from has a website www.koolrides.com they are based out of Arkansas City Kansas.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Mon Sep 05, 2011 1:45 pm

Well my saga continues --- lost my clutch action on thursday thought maybe the cable stretched -- no -- then thought well maybe my great anchor job on the new clutch tube slipped -- no -- opened up the tunnel again and found that the front brace has now broken loose -- anyone have any advice on converting to hydraulics?????????
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Mon Sep 05, 2011 2:47 pm

weld it. it lasted 40 years.

easiest is this:
https://secure.cbperformance.com/catalo ... uctid=1228

I have seen one a while back that put the master in the tunnel on stock pedal, havent seen in a while
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby Fireplug77 » Mon Sep 05, 2011 4:46 pm

I just tryed to post in the shout box and it would not let me.
User avatar
Fireplug77

Posts: 78
Joined: Sat Oct 10, 2009 8:42 am

Re: Dub Tub minor refurb

Postby 9 Fingers » Wed Sep 07, 2011 1:29 pm

I believe this is the setup your refering to Jim;
It's sold through SaCo or German Auto about $250. It would involve the least amount of modifcations to install and could well be worth the extra cost. CNC had a setup for $200 but it did not include tubing and the mastercylinder attach to the clutch pedal requiring holes though the firewall and welding on a tab to the clutch pedal.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby gimpy60 » Wed Sep 07, 2011 7:06 pm

do a good, quality job of welding & reinforcing the existing brace. then don't look back, it will last till I die.
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby vdubjim » Wed Sep 07, 2011 9:18 pm

gimpy60 wrote:do a good, quality job of welding & reinforcing the existing brace. then don't look back, it will last till I die.


Thats what i did on the bradley. Pics are on its build post.
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby 9 Fingers » Mon Sep 12, 2011 5:21 pm

Well it was the tunnel brace after all :shock: just my lousy clamping job :x soooooooo got the neighbor doin some light welding for me and the Tub will soon ride again 8-)
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Mon Jan 09, 2012 8:13 pm

The continuing saga------ So after the poor showing at the Rejects Reliabity Run, I finally pulled the engine a started the investigation as to why I had an Intake Valve stuck open Image

Upon closer inspection Image

With further disassembly damage to seat and guide can be seenImagebut no damage to the valve.

The culprit ImageWhere it came from or how it got there are still a mystery!!!!!!!! Anyone know a trusted machine shop close to Del City???
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Mon Jan 09, 2012 10:08 pm

daym!
Only one i trust is local is larry.

WHY is there red RTV on the head???????
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby Snot Rod » Mon Jan 09, 2012 10:50 pm

Bummer, I remember years ago I rebuilt a Fiat 850 Spyder, did not clean the ring grooves well enough which caused the ring to seize and melt up through the side of the piston, got on top and "textured" the top of the piston and head cavity. Does not take long to do a lot of damage.....

I had Eddie do the heads on the wife's bug, been a few years with no issues.
User avatar
Snot Rod

Posts: 115
Joined: Wed Sep 16, 2009 9:29 pm
Location: Usually under a VW

Re: Dub Tub minor refurb

Postby 9 Fingers » Tue Jan 10, 2012 5:07 pm

Jim, I thought you of all people would recognize VW headgasket material! :lol: You know to seal any Antifreeze leaks!!!!
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby gimpy60 » Tue Jan 10, 2012 6:53 pm

swap the heads for some rebuilt units of your choosing, leave the bubble gum off this time!!!!
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby 9 Fingers » Wed Jan 11, 2012 6:11 pm

Dropped the head off at Buddy Rice Machine Shop 1501 W Main OKC should be done by Friday for under $80.00. Seems very few shops can replace valve seats. This place was recommended by Roger at Bethany Imports so will we see how it comes out.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby Snot Rod » Wed Jan 11, 2012 6:40 pm

Seems very few shops can replace valve seats. ........ so will we see how it comes out..

I thought the whole idea was for it not to come out.....
User avatar
Snot Rod

Posts: 115
Joined: Wed Sep 16, 2009 9:29 pm
Location: Usually under a VW

Re: Dub Tub minor refurb

Postby gimpy60 » Thu Jan 12, 2012 6:31 am

:lol: :lol: :lol:
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby 9 Fingers » Thu Jan 12, 2012 8:47 am

:roll:
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby gimpy60 » Thu Jan 12, 2012 12:31 pm

put some 1.4 rockers on so that screw can get in the chamber & do some real damage....... ;)
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby vdubjim » Thu Jan 12, 2012 7:00 pm

Good to know, wonder what larry charges?

I can get heads in the 150-200 range complete.
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby 9 Fingers » Thu Jan 12, 2012 9:26 pm

Neither Larry nor Eddie will do valve seats. I guess it take specialized equipment and alot of heat.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Fri Jan 13, 2012 3:42 pm

I just got my head back--not as much damage as I expected :D they just had to grind the valve seat and hone the guide. Cost??? A measley Grant.
Old VW's take beating with no retreating!!! :mrgreen:
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby gimpy60 » Fri Jan 13, 2012 6:11 pm

Measley? dayum I would like to have a handfull of measley. I run thru 5 of 'em on my m/c trans, mostly on spec. tools. Now get yer arse in gear & get the tub up & goin' , I don't want to have to tell ya agin'. bye now
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby 9 Fingers » Sun Jan 15, 2012 6:52 am

Engine back together just waitin on some gaskets to arrive from CB Performance. Then install it and drive it like I own it!!!!!!!!
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Sun Jan 15, 2012 12:13 pm

"gaskets to arrive from CB Performance"

eh??
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby gimpy60 » Sun Jan 15, 2012 6:21 pm

hygh perf. stuff Jimmy, we can't be havin' that junk for our rides, too much hp.
Random avatar
gimpy60

Posts: 435
Joined: Sat Sep 12, 2009 9:10 am
Location: newalla

Re: Dub Tub minor refurb

Postby 9 Fingers » Sun Jan 15, 2012 8:51 pm

Nay just easier to order on line then go somewhere and buy it!!!!!! I'm gettin "Gimpy" in my old age!!!!
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Mon Jan 16, 2012 12:23 pm

support your local business!
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby 9 Fingers » Thu Jan 19, 2012 7:07 pm

Engines back together and coming off the stand tonite and prepped for install tomorrow!!!
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Fri Jan 20, 2012 2:13 pm

On the road again!!!! Now bring on the winter thaw!!!!!
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Sat Mar 10, 2012 8:03 am

About a month ago checking all the fluid levels I noticed that the brake fluid was down so started looking for a leak. It was leaking from the back of the master cylinder around the pedal rod. So out it came and down to my local Autozone for an exchange (lifetime warrantied parts are the only way to go). Reinstalled new M/C and thought I would try to vacuum bleed the system resoluting in a hand cramp and a mushy pedal. Then I tried pump bleeding resoluting in a wife complaining about being cold (in her defense my garage is not heated), tired of pumping the brakes, and a mushy pedal. My neighbor (the Corvette guy) said he had an old pressure bleeder that he got from a pawn shop
and I was welcome to give it a try. So after running all over town to find a quick disconnect Hydraulic fitting
(thank you Midwest Hose), making an adapter out of an old M/C cap
Image,
and cleaning out and refilling the pressure bleeder (God only knows how old the nasty brown fluid in there was), I now have a firm pedal and an air free brake system.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Sat Mar 10, 2012 11:29 am

Awesome, squishy pedal is also from shoes that arent curved the same as the drum, pushing the pedal bows the shoe, making it squishy.
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby 9 Fingers » Sat Mar 10, 2012 1:38 pm

Good to know! However I checked and adjusted the shoes when I looked at wheel cylinders for leaks, the drums and shoes where dry and dusty just as they should be with no signs of unusual ware.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby 9 Fingers » Mon Dec 03, 2012 7:06 pm

So this is a month or so late but I did do some changing to the Tub this fall:
Hood now Scalloped to match the headlights Image
Faux hood scoop and injector stakes installed plus thunderbolt added Imageand a new rear lower valance made from a screen door guard Image Next up sand blasting the wheels and then clear coat the raw aluminum and a set of new baloney's as these are over ten years old Image and the drivers front is full of Slime and keeps going out of balance until the tire warms up and turns it back to liquid instead of gell.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City

Re: Dub Tub minor refurb

Postby vdubjim » Mon Dec 03, 2012 8:00 pm

whats on the front fenders?
User avatar
vdubjim
Site Admin

Posts: 2019
Joined: Fri Aug 28, 2009 10:21 am

Re: Dub Tub minor refurb

Postby vwlimoguy » Mon Dec 03, 2012 10:31 pm

Looks like a Transformer emblem.
User avatar
vwlimoguy

Posts: 297
Joined: Wed Nov 04, 2009 1:38 pm
Location: OKC
Highscores: 5

Re: Dub Tub minor refurb

Postby 9 Fingers » Tue Dec 04, 2012 9:22 pm

Used Pedal covers with a tribal flame pattern on them that someone returned and we took back as damaged so I put them to use till I weld up the fender holes or replace the fenders.
User avatar
9 Fingers

Posts: 200
Joined: Fri Aug 28, 2009 4:40 pm
Location: Del City


Return to Build Status

cron
Hosted by Freeforum.ca, get your free forum now! TOS | Support Forums | Report a violation
buying traffic website
MultiForums powered by echoPHP phpBB MultiForums
